Sigma-Aldrich 182702 Poly(vinylidene fluoride) average Mw ~534,000 by GPC, powder 5 gr
Kategori
Marka
Stok Kodu
LB.SA.182702-5G
Bilgi
CAS Number: 24937-79-9
| Sigma-Aldrich 182702 Poly(vinylidene fluoride) average Mw ~534,000 by GPC, powder |
|
Synonym(s): PVDF

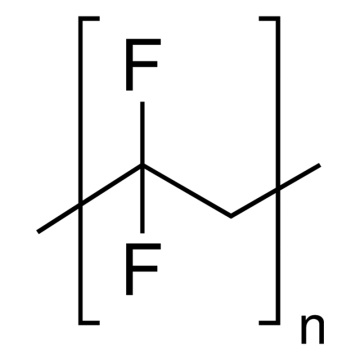

Linear Formula: (CH2CF2)n
CAS Number: 24937-79-9
MDL number: MFCD00084470
PubChem Substance ID: 24851010
NACRES: NA.23
SDS için Resmi Tıklayınız!!!
|
|
PROPERTIES
vapor pressure 15 mmHg ( 32 °C)
Quality Level 100
form powder
mol wt average Mw ~534,000 by GPC
refractive index n20/D 1.42
transition temp Tg −38 °C Tm 171 °C
density 1.74 g/mL at 25 °C
SMILES string FC(F)=C InChI 1S/C2H2F2/c1-2(3)4/h1H2
InChI key BQCIDUSAKPWEOX-UHFFFAOYSA-N
DESCRIPTION
General description
Poly(vinylidene fluoride) PVDF is a semi crystalline non-centrosymmetric polymer which exhibits piezo-, pyro- and ferroelectric properties. It is a linear polymer that shows permanent electric dipoles perpendicular to the direction of the molecular chain. These dipoles result from the difference in electronegativity between the atoms of hydrogen and fluorine with respect to carbon. Depending on the processing conditions, PVDF exhibits several different crystalline phases (α,β,γ,δ). The β phase of PVDF is the phase that exhibits the best ferroelectric and piezoelectric properties.[1][2][3][4]
Application
Poly(vinylidene fluoride) (PVDF) is used in nanoporous electrodes.[5] It is used to synthesize composites comprising of ultrafine fibers of PVDF embedded with carbon nanotubes.[2] It can be used in sensors, actuators, for energy storage,[1] sphygmomanometers, pressure sensors and nanogenerators,[4] lithium ion batteries.[6] Additionally, it may find application as matrix for PVDF-nanoclay nanocomposites[7] and PVDF acrylic rubber/clay nanocomposite hybrid.[8]
Packaging

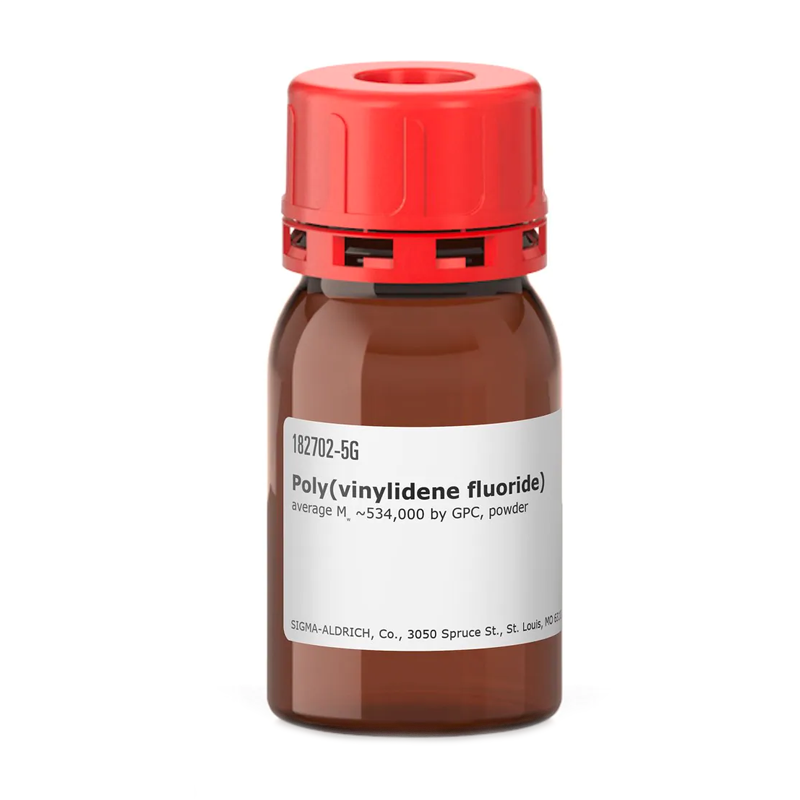

5 g in glass bottle

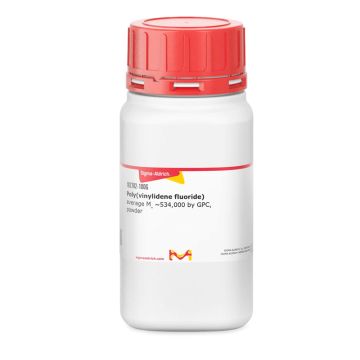

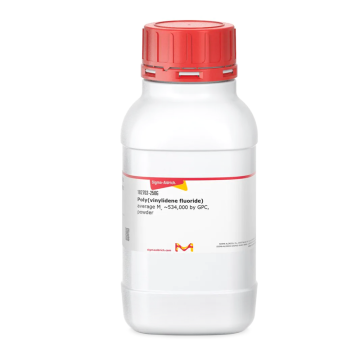

100, 250 g in poly bottle
|
