Sigma-Aldrich 900407 Graphene nanoplatelets surface area 750 m2/g 250 gr
| Sigma-Aldrich 900407 Graphene nanoplatelets surface area 750 m2/g 250 gr |
|
Synonym(s): GNPs, xGnP® graphene nanoplatelets-grade C-750
Empirical Formula (Hill Notation): C
CAS Number: 7782-42-5
Molecular Weight: 12.01
EC Number: 231-955-3
SDS için Resmi Tıklayınız!!! |
|
PROPERTIES
description relative gravity: 2.0-2.25 g/cm3
Quality Level 100
form powder
thickness a few nm
particle size <2 μm
surface area 750 m2/g
bulk density 0.2‑0.4 g/cm3
DESCRIPTION
General description
xGnP® graphene nanoplatelets are unique nanoparticles consisting of short stacks of graphene sheets having a platelet shape. The unique size and platelet morphology of xGnP® graphene nanoplatelets makes these particles especially effective at providing barrier properties, while their pure graphitic composition makes them excellent electrical and thermal conductors. xGnP® graphene nanoplatelets can improve mechanical properties such as stiffness, strength, and surface hardness of the matrix material. xGnP® graphene nanoplatelets are compatible with almost all polymers, and can be an active ingredient in inks or coatings as well as an excellent additive to plastics of all types. The unique manufacturing processes are non-oxidizing, so material has a pristine graphitic surface of sp2 carbon molecules that makes it especially suitable for applications requiring high electrical or thermal conductivity. Grade C particles typically consist of aggregates of sub-micron platelets that have a particle diameter of less than 2 microns and a typical particle thickness of a few nanometers, depending on the surface area. In general, grade C particles show very high surface area and macro-porosity. Grade C particles are available in different grades with average surface areas of 300, 500 and 750 m2/g.
Application
Ultracapacitor electrodes.
Anode materials for lithium-ion batteries.
Conductive additive for battery electrodes.
Electrically conductive inks.
Thermally conductive films and coatings.
Additive for lightweight composites.
Films or coatings for EMI shielding.
Substrate for chemical and biochemical sensors. Barrier material for packaging.
Additive for super-strong concrete.
Additive for metal-matrix composites.
Packaging

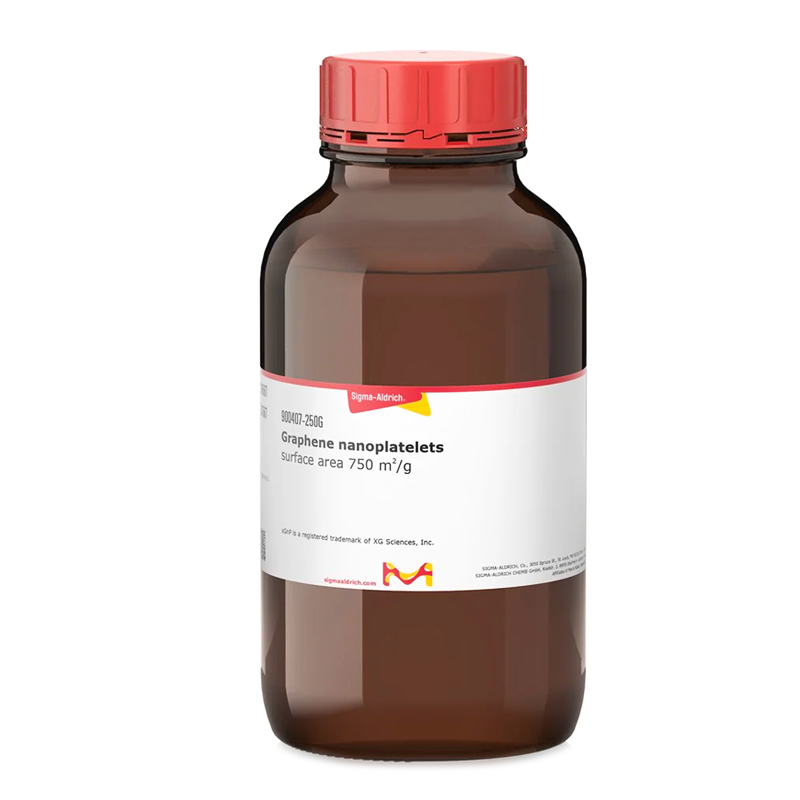

250 g in glass bottle
Other Notes
Graphene nanoplatelets have naturally occurring functional groups like ethers, carboxyls, or hydroxyls that can react with atmospheric humidity to form acids or other compounds. These functional groups are present on the edges of the particles and their wt% varies with particle size. Surface area of 750 m2/g is an average surface area.
Legal Information
xGnP is a registered trademark of XG Sciences, Inc. |
